Sonmica 9950
Description:
Sonmica 9950 is a high performance sealing material containing exfoliated mica with bio soluble fibers bonded to a SS 316L tanged core.
Application:
Recommended for high temperature application. SONMICA 9950 is also a good material for flange insulation solution.

Description

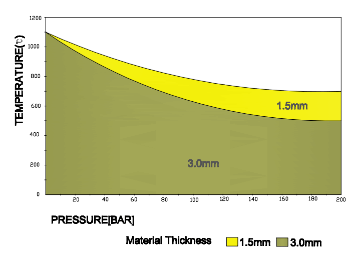

Technical Data:
Maximum Temperature	^o_C	950
Maximum Pressure	bar	200
Density	g/cm³	1.6
Compressibility ASTM F36A	%	38
Recovery ASTM F36A	%	4.0
Gas Leakage DIN 3535	mg/m*s	0.1
Creep Relaxation DIN 3535	%	18
PH		0-14

Supplied Data:
Thicknesses:	1 ~ 3 mm
Sheet sizes :	10001000 15001500mm
Color:	Gold
