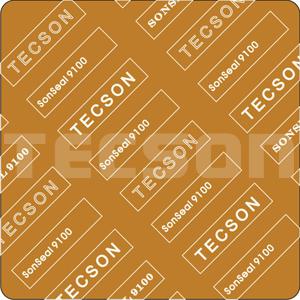

- Sonseal 9100
Un material de junta sin asbesto de alta calidad. Se forma por fibra mineral resistente a la temperatura y fibras de aramida pegadas mediante una goma especial de nitrilo.
Las juntas son adecuadas para los materiales comunes como el petr¨®leo y los gases no corrosivos y b¨¢sicos productos qu¨ªmicos.
Description
Technical Data:
| Colour | Yellow |
| Anti-stick coating | One Side |
| Maximum Temperature | 380 degrees Celsius |
| Maximum Pressure | 80 bar |
| Density | 1.8 ~ 2.0 g/cm3 |
| Compressibility ASTM F36A | 10% |
| Recovery ASTM F36A | 45% |
| Gas leakage DIN3535 | 0.06 mg/m*s |
| Thickness increase Oil IRM 903 150 degrees Celsius for 5 hrs | 5 % Max. |
| Thickness increase ASTM Fuel B 23 degrees Celsius for 5 hrs | 5 % Max. |
Supply Data:
| Thickness | 0.4 ~ 5 mm |
| Sheet size | 1500*1500 mm |
